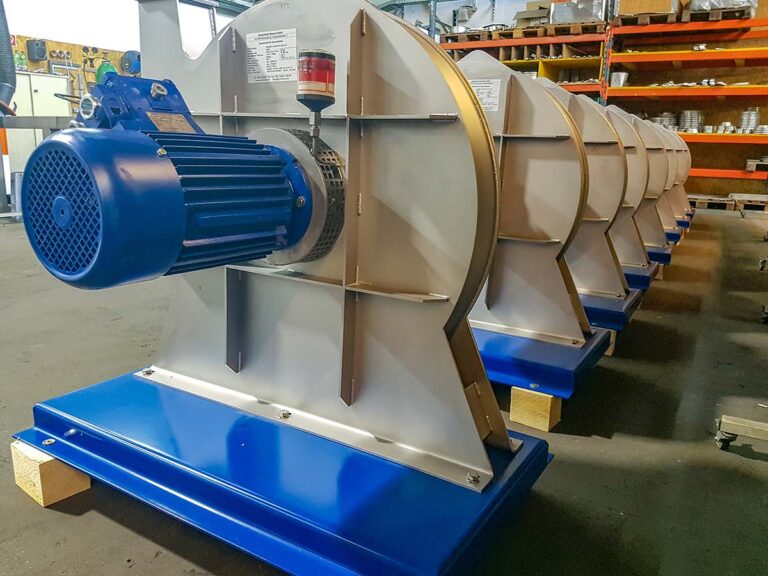

The Gas compressor serves as a pressure booster fan for biogas, natural gas and various special gases.
ATEX-compliant, the indoor and outdoor gas compressors are suitable for operation in zones 1 and 2.
The simple and maintenance-free design ensures long durability.
Application areas of our GVD gas compressors
- Biogas
- natural gas
- various special gases
Execution
Our gas compressors guarantee:
- Constant outlet pressure
- permanently technically tight design
- insensitive to moist gases
Gas compressor features include:
- finely balanced aluminum impeller
- corrosion-resistant stainless steel shaft
- Shaft sealing via a double-acting lip seal
- automatic grease dispenser
- Speed control via frequency converter
- Special motors with UL approval
Technical data
Main features
Optional
Technical data
✓ Housing: Stainless steel (V4A)
✓ Wheel: made of aluminum for biogas, natural gas, special gases on request
✓ Volume flow: 50 – 6000 Bm3/h (depending on speed)
✓ Pressure increase: max 160 mbar or 210 mbar with 87 Hz technology
✓ Motor: 3 x 400 V | 1.5 – 30 kW | Eex de II t3 (Atex approved, with PTC thermistor, suitable for frequency converter operation)
✓ Usable frequency: 15 – 75 Hz (900 rpm to 4500 rpm)
✓ Connection: DN 80 – DN 250, PN 10
Main features
✓ Wide flow range with constant outlet pressure (flat
characteristic curve)
✓ Ignition source-free and permanently technically tight design
✓ Insensitive to moist gases
Optional
✓ Connection flange according to customer requirements
✓ Automatic drainage
✓ Housing position and direction of rotation according to customer requirements
✓ 87 Hz technology for higher output pressure
